Cloud masks

Different instruments, by virtue of their differing measurement principle and footprint, see clouds in different ways. To provide an overview of the cloud fields sampled by HALO during EUREC4A, a cloud mask is created for each cloud sensitive instrument.
In the following, we compare the different cloud mask products for a case study on 5 February and further provide a statistical overview for the full campaign period.

More information on the dataset can be found in Konow et al. (in preparation). If you have questions or if you would like to use the data for a publication, please don’t hesitate to get in contact with the dataset authors as stated in the dataset attributes contact or author.

import eurec4a
import numpy as np
import xarray as xr
import matplotlib as mpl

from mpl_toolkits.axes_grid1 import make_axes_locatable
from matplotlib.colors import LogNorm

We generally don’t support ignoring warnings, however, we do so in this notebook to suppress warnings originating from zero division. Unfortunately, we coudn’t find another way to handle the warnings. If you have an idea, please make a pull request and change it :)

import warnings
warnings.filterwarnings("ignore")

Cloud cover functions

We define some utility functions to extract (circle) cloud cover estimates from different datasets assuming that the datasets follow a certain flag meaning convention.

In particular, we define a minimum cloud cover based on the cloud mask flag most_likely_cloudy and a maximum cloud cover combining the flags most_likely_cloudy and probably_cloudy. The cloud mask datasets slightly vary in their flag definition for cloud free conditions and their handling of unvalid measurements which is taken care of by the following functions.

def _isvalid(da):
    meanings = dict(zip(da.flag_meanings.split(" "), da.flag_values))
    return ~(np.isnan(da) | ("unknown" in meanings and da==meanings["unknown"]))

def _cloudy_max(da):
    meanings = dict(zip(da.flag_meanings.split(" "), da.flag_values))
    return (da==meanings["most_likely_cloudy"]) | (da==meanings["probably_cloudy"])

def _cloudy_min(da):
    meanings = dict(zip(da.flag_meanings.split(" "), da.flag_values))
    return da==meanings["most_likely_cloudy"]

def cfmin(ds):
    sumdims = [d for d in ds.cloud_mask.dims if d != "time"]
    return (_cloudy_min(ds.cloud_mask).sum(dim=sumdims)
            / _isvalid(ds.cloud_mask).sum(dim=sumdims))

def cfmax(ds):
    sumdims = [d for d in ds.cloud_mask.dims if d != "time"]
    return (_cloudy_max(ds.cloud_mask).sum(dim=sumdims)
            / _isvalid(ds.cloud_mask).sum(dim=sumdims))

def correct_VELOX(ds):
    return ds.assign(CF_min=ds.CF_min.where((ds.CF_min >=0 ) & (ds.CF_min <= 1)),
                     CF_max=ds.CF_max.where((ds.CF_max >=0 ) & (ds.CF_max <= 1)))

def ensure_cfminmax(ds):
    if "CF_min" not in ds:
        ds = ds.assign(CF_min=cfmin)
    if "CF_max" not in ds:
        ds = ds.assign(CF_max=cfmax)
    return correct_VELOX(ds)

from multiprocessing.pool import ThreadPool

def load_cloudmask_dataset(cat_item):
    # load in parallel as this function is mainly limited by the network roundtrip time
    p = ThreadPool(20)
    return ensure_cfminmax(xr.concat(list(p.map(lambda v: v.get().to_dask().chunk(),
                                                cat_item.values())),
                                     dim="time"))

Get data

We use the eurec4a intake catalog to access the data files.

cat = eurec4a.get_intake_catalog()
list(cat.HALO)
['BAHAMAS',
 'specMACS',
 'UNIFIED',
 'SMART',
 'VELOX',
 'KT19',
 'WALES',
 'BACARDI',
 'track']

For each instrument, we extract the data from individual flights and concatenate them to campaign-spanning datasets for the cloud mask files.

cat_cloudmask = {
    "WALES": cat.HALO.WALES.cloudparameter,
    "HAMP Radar": cat.HALO.UNIFIED.HAMPradar_cloudmask,
    "specMACS": cat.HALO.specMACS.cloudmaskSWIR,
    "HAMP Radiometer": cat.HALO.UNIFIED.HAMPradiometer_cloudmask,
    "KT19": cat.HALO.KT19.cloudmask,
    "VELOX": cat.HALO.VELOX.cloudmask,
}
data = {k: load_cloudmask_dataset(v) for k, v in cat_cloudmask.items()}

We have a look at the time periods spanned by the individual datasets: The datasets HAMP Radar, HAMP Radiometer, and specMACS include measurements from the transfer flights on 19 January to Barbados and on 18 February back over the Atlantic to Europe. The datasets WALES, KT19, and VELOX are limited to the 13 local research flights between 22 January and 15 February.

for k, v in data.items():
    print(f"{k}: {v.isel(time=0).time.values} -  {v.isel(time=-1).time.values}")
WALES: 2020-01-22T15:18:00.155000064 -  2020-02-15T23:30:02.176000000
HAMP Radar: 2020-01-19T09:34:25.000004352 -  2020-02-18T18:55:30.999997440
specMACS: 2020-01-19T09:29:00.063636992 -  2020-02-18T17:27:00.982214912
HAMP Radiometer: 2020-01-19T09:34:25.000004352 -  2020-02-18T18:55:30.999997440
KT19: 2020-01-22T14:57:36.041336059 -  2020-02-15T23:59:53.497467041
VELOX: 2020-01-24T09:33:35.000000000 -  2020-02-15T23:25:18.000000000

Case study on February 5

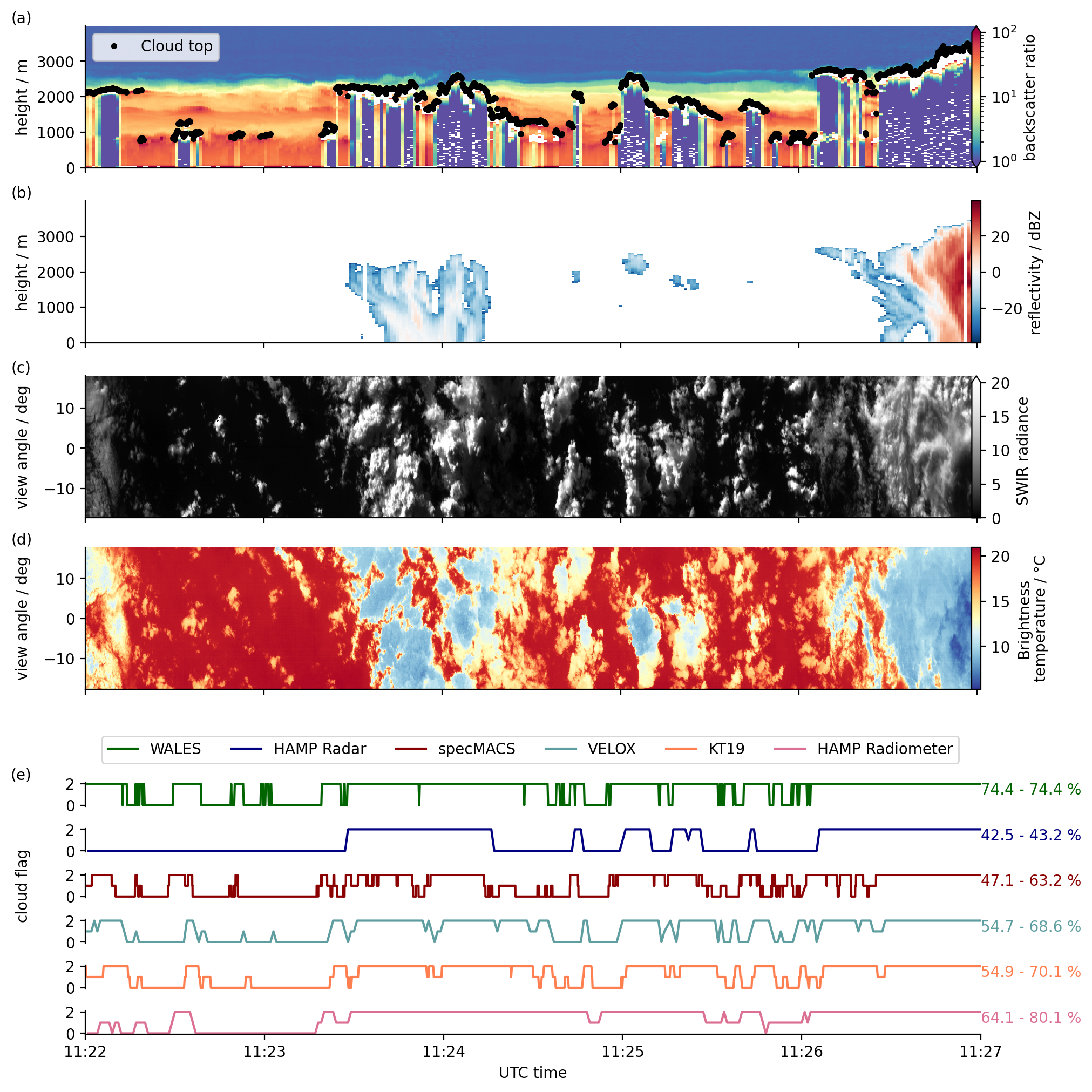

We show the cloud masks from the various instruments for an 5 minute time interval around noon on February 5.

We add 2D vertical lidar and radar data, as well as 2D horizontal imager data for a better visualization of the cloud information content provided by the instruments.

Data preprocessing

Time interval

s = slice("2020-02-05T11:22:00", "2020-02-05T11:27:00")

HAMP radar reflectivities

ds_radar = cat.HALO.UNIFIED.HAMPradar["HALO-0205"].to_dask()
da_radar = ds_radar.dBZ.sel(height=slice(0, 4000), time=s)

WALES lidar backscatter ratio at 1064 nm

The WALES dataset has a range coordinate that can be translated into a height coordinate by: \begin{equation} height = height_above_sea_level[0] - range \end{equation}

def add_height_coordinate_wales(ds):
    ds.coords["height"] = ds.height_above_sea_level[0].values - ds.range
    return ds.swap_dims({"range": "height"})
ds_bsri = add_height_coordinate_wales(cat.HALO.WALES.bsri["HALO-0205"].to_dask())
da_bsri = ds_bsri.backscatter_ratio.sel(height=slice(4000, 0), time=s)

From WALES we also include the cloud top height information

da_cth = cat.HALO.WALES.cloudparameter["HALO-0205"].to_dask().cloud_top.sel(time=s)

SpecMACS imager radiance

From specMACS we include the radiances at 1.6 micron in the short-wave infrared (SWIR).

Note

this dataset is only available for the following application on February 5, not for the whole campaign.

url = ("https://observations.ipsl.fr/thredds/dodsC/EUREC4A/PRODUCTS/SPECMACS-CLOUDMASK/"
       + "EUREC4A_HALO_specMACS_cloud_mask_20200205T100000-20200205T182359_v1.1.nc")
ds_swir = xr.open_dataset(url, engine="netcdf4")
da_swir = ds_swir.sel(time=s).isel(radiation_wavelength=0).swir_radiance

VELOX broadband IR brightness temperature

Next to the SpecMACS SWIR radiance, we include broadband brightness temperatures from VELOX (7.7 - 12 μm).

Note

this dataset is only available for the following application on February 5, not for the whole campaign.

ds_bt = xr.open_zarr("ipfs://QmQEwkhhHdJkiThf4hnj9G3wgqVreBnWGrX2A5kT6CrtY7",
                     consolidated=True,
                    ).assign_coords(va=lambda x: x.va)
---------------------------------------------------------------------------

KeyboardInterrupt                         Traceback (most recent call last)
/tmp/ipykernel_5115/3080218225.py in <module>
----> 1 ds_bt = xr.open_zarr("ipfs://QmQEwkhhHdJkiThf4hnj9G3wgqVreBnWGrX2A5kT6CrtY7",
      2                      consolidated=True,
      3                     ).assign_coords(va=lambda x: x.va)

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/xarray/backends/zarr.py in open_zarr(store, group, synchronizer, chunks, decode_cf, mask_and_scale, decode_times, concat_characters, decode_coords, drop_variables, consolidated, overwrite_encoded_chunks, chunk_store, storage_options, decode_timedelta, use_cftime, **kwargs)
    766     }
    767
--> 768     ds = open_dataset(
    769         filename_or_obj=store,
    770         group=group,

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/xarray/backends/api.py in open_dataset(filename_or_obj, engine, chunks, cache, decode_cf, mask_and_scale, decode_times, decode_timedelta, use_cftime, concat_characters, decode_coords, drop_variables, backend_kwargs, *args, **kwargs)
    493
    494     overwrite_encoded_chunks = kwargs.pop("overwrite_encoded_chunks", None)
--> 495     backend_ds = backend.open_dataset(
    496         filename_or_obj,
    497         drop_variables=drop_variables,

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/xarray/backends/zarr.py in open_dataset(self, filename_or_obj, mask_and_scale, decode_times, concat_characters, decode_coords, drop_variables, use_cftime, decode_timedelta, group, mode, synchronizer, consolidated, chunk_store, storage_options, stacklevel, lock)
    836         store_entrypoint = StoreBackendEntrypoint()
    837         with close_on_error(store):
--> 838             ds = store_entrypoint.open_dataset(
    839                 store,
    840                 mask_and_scale=mask_and_scale,

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/xarray/backends/store.py in open_dataset(self, store, mask_and_scale, decode_times, concat_characters, decode_coords, drop_variables, use_cftime, decode_timedelta)
     25         encoding = store.get_encoding()
     26
---> 27         vars, attrs, coord_names = conventions.decode_cf_variables(
     28             vars,
     29             attrs,

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/xarray/conventions.py in decode_cf_variables(variables, attributes, concat_characters, mask_and_scale, decode_times, decode_coords, drop_variables, use_cftime, decode_timedelta)
    510             and stackable(v.dims[-1])
    511         )
--> 512         new_vars[k] = decode_cf_variable(
    513             k,
    514             v,

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/xarray/conventions.py in decode_cf_variable(name, var, concat_characters, mask_and_scale, decode_times, decode_endianness, stack_char_dim, use_cftime, decode_timedelta)
    358         var = times.CFTimedeltaCoder().decode(var, name=name)
    359     if decode_times:
--> 360         var = times.CFDatetimeCoder(use_cftime=use_cftime).decode(var, name=name)
    361
    362     dimensions, data, attributes, encoding = variables.unpack_for_decoding(var)

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/xarray/coding/times.py in decode(self, variable, name)
    524             units = pop_to(attrs, encoding, "units")
    525             calendar = pop_to(attrs, encoding, "calendar")
--> 526             dtype = _decode_cf_datetime_dtype(data, units, calendar, self.use_cftime)
    527             transform = partial(
    528                 decode_cf_datetime,

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/xarray/coding/times.py in _decode_cf_datetime_dtype(data, units, calendar, use_cftime)
    147     values = indexing.ImplicitToExplicitIndexingAdapter(indexing.as_indexable(data))
    148     example_value = np.concatenate(
--> 149         [first_n_items(values, 1) or [0], last_item(values) or [0]]
    150     )
    151

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/xarray/core/formatting.py in first_n_items(array, n_desired)
     70         indexer = _get_indexer_at_least_n_items(array.shape, n_desired, from_end=False)
     71         array = array[indexer]
---> 72     return np.asarray(array).flat[:n_desired]
     73
     74

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/xarray/core/indexing.py in __array__(self, dtype)
    355
    356     def __array__(self, dtype=None):
--> 357         return np.asarray(self.array, dtype=dtype)
    358
    359     def __getitem__(self, key):

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/xarray/core/indexing.py in __array__(self, dtype)
    420     def __array__(self, dtype=None):
    421         array = as_indexable(self.array)
--> 422         return np.asarray(array[self.key], dtype=None)
    423
    424     def transpose(self, order):

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/xarray/backends/zarr.py in __getitem__(self, key)
     71         array = self.get_array()
     72         if isinstance(key, indexing.BasicIndexer):
---> 73             return array[key.tuple]
     74         elif isinstance(key, indexing.VectorizedIndexer):
     75             return array.vindex[

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/zarr/core.py in __getitem__(self, selection)
    671
    672         fields, selection = pop_fields(selection)
--> 673         return self.get_basic_selection(selection, fields=fields)
    674
    675     def get_basic_selection(self, selection=Ellipsis, out=None, fields=None):

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/zarr/core.py in get_basic_selection(self, selection, out, fields)
    796                                                 fields=fields)
    797         else:
--> 798             return self._get_basic_selection_nd(selection=selection, out=out,
    799                                                 fields=fields)
    800

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/zarr/core.py in _get_basic_selection_nd(self, selection, out, fields)
    839         indexer = BasicIndexer(selection, self)
    840
--> 841         return self._get_selection(indexer=indexer, out=out, fields=fields)
    842
    843     def get_orthogonal_selection(self, selection, out=None, fields=None):

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/zarr/core.py in _get_selection(self, indexer, out, fields)
   1134             # allow storage to get multiple items at once
   1135             lchunk_coords, lchunk_selection, lout_selection = zip(*indexer)
-> 1136             self._chunk_getitems(lchunk_coords, lchunk_selection, out, lout_selection,
   1137                                  drop_axes=indexer.drop_axes, fields=fields)
   1138

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/zarr/core.py in _chunk_getitems(self, lchunk_coords, lchunk_selection, out, lout_selection, drop_axes, fields)
   1845         else:
   1846             partial_read_decode = False
-> 1847             cdatas = self.chunk_store.getitems(ckeys, on_error="omit")
   1848         for ckey, chunk_select, out_select in zip(ckeys, lchunk_selection, lout_selection):
   1849             if ckey in cdatas:

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/zarr/storage.py in getitems(self, keys, **kwargs)
   1114     def getitems(self, keys, **kwargs):
   1115         keys_transformed = [self._normalize_key(key) for key in keys]
-> 1116         results = self.map.getitems(keys_transformed, on_error="omit")
   1117         # The function calling this method may not recognize the transformed keys
   1118         # So we send the values returned by self.map.getitems back into the original key space.

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/fsspec/mapping.py in getitems(self, keys, on_error)
     88         oe = on_error if on_error == "raise" else "return"
     89         try:
---> 90             out = self.fs.cat(keys2, on_error=oe)
     91             if isinstance(out, bytes):
     92                 out = {keys2[0]: out}

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/fsspec/spec.py in cat(self, path, recursive, on_error, **kwargs)
    750             for path in paths:
    751                 try:
--> 752                     out[path] = self.cat_file(path, **kwargs)
    753                 except Exception as e:
    754                     if on_error == "raise":

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/ipfsspec/core.py in cat_file(self, path)
    181     def cat_file(self, path):
    182         logger.debug("cat on %s", path)
--> 183         data = self._gw_get(path)
    184         if logger.isEnabledFor(logging.DEBUG):
    185             h = hashlib.sha256(data).hexdigest()

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/ipfsspec/core.py in _gw_get(self, path)
    159
    160     def _gw_get(self, path):
--> 161         return self._run_on_any_gateway(lambda gw: gw.get(path))
    162
    163     def _gw_apipost(self, call, **kwargs):

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/ipfsspec/core.py in _run_on_any_gateway(self, f)
    153             if wait_time > 0:
    154                 time.sleep(wait_time)
--> 155             res = f(gw)
    156             if res is not None:
    157                 break

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/ipfsspec/core.py in <lambda>(gw)
    159
    160     def _gw_get(self, path):
--> 161         return self._run_on_any_gateway(lambda gw: gw.get(path))
    162
    163     def _gw_apipost(self, call, **kwargs):

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/ipfsspec/core.py in get(self, path)
     35         logger.debug("get %s via %s", path, self.url)
     36         try:
---> 37             res = self.session.get(self.url + "/ipfs/" + path)
     38         except requests.ConnectionError as e:
     39             logger.debug("Connection Error: %s", e)

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/requests/sessions.py in get(self, url, **kwargs)
    553
    554         kwargs.setdefault('allow_redirects', True)
--> 555         return self.request('GET', url, **kwargs)
    556
    557     def options(self, url, **kwargs):

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/requests/sessions.py in request(self, method, url, params, data, headers, cookies, files, auth, timeout, allow_redirects, proxies, hooks, stream, verify, cert, json)
    540         }
    541         send_kwargs.update(settings)
--> 542         resp = self.send(prep, **send_kwargs)
    543
    544         return resp

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/requests/sessions.py in send(self, request, **kwargs)
    653
    654         # Send the request
--> 655         r = adapter.send(request, **kwargs)
    656
    657         # Total elapsed time of the request (approximately)

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/requests/adapters.py in send(self, request, stream, timeout, verify, cert, proxies)
    437         try:
    438             if not chunked:
--> 439                 resp = conn.urlopen(
    440                     method=request.method,
    441                     url=url,

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/urllib3/connectionpool.py in urlopen(self, method, url, body, headers, retries, redirect, assert_same_host, timeout, pool_timeout, release_conn, chunked, body_pos, **response_kw)
    697
    698             # Make the request on the httplib connection object.
--> 699             httplib_response = self._make_request(
    700                 conn,
    701                 method,

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/urllib3/connectionpool.py in _make_request(self, conn, method, url, timeout, chunked, **httplib_request_kw)
    443                     # Python 3 (including for exceptions like SystemExit).
    444                     # Otherwise it looks like a bug in the code.
--> 445                     six.raise_from(e, None)
    446         except (SocketTimeout, BaseSSLError, SocketError) as e:
    447             self._raise_timeout(err=e, url=url, timeout_value=read_timeout)

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/urllib3/packages/six.py in raise_from(value, from_value)

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/site-packages/urllib3/connectionpool.py in _make_request(self, conn, method, url, timeout, chunked, **httplib_request_kw)
    438                 # Python 3
    439                 try:
--> 440                     httplib_response = conn.getresponse()
    441                 except BaseException as e:
    442                     # Remove the TypeError from the exception chain in

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/http/client.py in getresponse(self)
   1346         try:
   1347             try:
-> 1348                 response.begin()
   1349             except ConnectionError:
   1350                 self.close()

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/http/client.py in begin(self)
    314         # read until we get a non-100 response
    315         while True:
--> 316             version, status, reason = self._read_status()
    317             if status != CONTINUE:
    318                 break

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/http/client.py in _read_status(self)
    275
    276     def _read_status(self):
--> 277         line = str(self.fp.readline(_MAXLINE + 1), "iso-8859-1")
    278         if len(line) > _MAXLINE:
    279             raise LineTooLong("status line")

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/socket.py in readinto(self, b)
    667         while True:
    668             try:
--> 669                 return self._sock.recv_into(b)
    670             except timeout:
    671                 self._timeout_occurred = True

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/ssl.py in recv_into(self, buffer, nbytes, flags)
   1239                   "non-zero flags not allowed in calls to recv_into() on %s" %
   1240                   self.__class__)
-> 1241             return self.read(nbytes, buffer)
   1242         else:
   1243             return super().recv_into(buffer, nbytes, flags)

/usr/share/miniconda/envs/how_to_eurec4a/lib/python3.8/ssl.py in read(self, len, buffer)
   1097         try:
   1098             if buffer is not None:
-> 1099                 return self._sslobj.read(len, buffer)
   1100             else:
   1101                 return self._sslobj.read(len)

KeyboardInterrupt:

Preprocess cloud mask data

We copy the data dictionary and apply the time selection.

For the 2D horizontal imagers we select a region in the center, derive a representative (most frequent) cloud_mask flag value and use that in the following intercomparison plot.

  • VELOX: we select only the central 11 x 11 pixels, i.e. view angle = 0 ∓ 0.2865 (see below)

  • SpecMACS: we select the central 0.6 degrees, i.e. angle = 0 ∓ 0.3

What is the angle of the 11 central pixel in accross track direction for VELOX?

xmid = ds_bt.x.size // 2
va_central = ds_bt.isel(time=0, x=slice(xmid - 5, xmid + 6)).va
(va_central.max() - va_central.min()).values
def most_frequent_flag(var, dims):
    flags = xr.DataArray(var.flag_values, dims=("__internal__flags__"))
    flag_indices = (var == flags).sum(dims).argmax("__internal__flags__")
    return xr.DataArray(var.flag_values[flag_indices.data],
                        dims=flag_indices.dims,
                        attrs=var.attrs)

def select_specmacs_cloudmask(ds):
    specmacs = ds.sel(angle=slice(.3, -.3))
    return ds.assign({"cloud_mask": most_frequent_flag(specmacs.cloud_mask, "angle"),
                      "CF_min": cfmin(specmacs),
                      "CF_max": cfmax(specmacs)})

def select_velox_cloudmask(ds):
    xmid = ds.x.size // 2
    ymid = ds.y.size // 2
    velox = ds.isel(x=slice(xmid - 5, xmid + 6), y=slice(ymid - 5, ymid + 6))
    return ds.assign({"cloud_mask": most_frequent_flag(velox.cloud_mask, ("x", "y")),
                      "CF_min": cfmin(velox),
                      "CF_max": cfmax(velox)})

cloudmask_selectors = {
    "WALES": lambda ds: ds,
    "HAMP Radar": lambda ds: ds,
    "specMACS": select_specmacs_cloudmask,
    "HAMP Radiometer": lambda ds: ds,
    "KT19": lambda ds: ds,
    "VELOX": select_velox_cloudmask,
}
data0205 = {k: ensure_cfminmax(v["HALO-0205"].to_dask()) for k, v in cat_cloudmask.items()}
data_feb5 = {k: cloudmask_selectors[k](v.sel(time=s)) for k, v in data0205.items()}

Plot

colors={
    "WALES": "darkgreen",
    "HAMP Radar": "navy",
    "specMACS": "darkred",
    "HAMP Radiometer": "palevioletred",
    "KT19": "coral",
    "VELOX": "cadetblue",
       }
%matplotlib inline
import matplotlib.pyplot as plt
plt.style.use(["./mplstyle/book"])
with plt.style.context("mplstyle/square"):
    fig, (ax0, ax1, ax2, ax3, axLegend, axL1, axL2, axL3, axL4, axL5, axL6) = plt.subplots(
        11, 1, sharex=True, gridspec_kw={"height_ratios": [3, 3, 3, 3, 0.5, 0.5, 0.5,
                                                           0.5, 0.5, 0.5, 0.5]}
    )

    ## 2D vertical
    # Wales backscatter ratio
    im0 = da_bsri.plot.pcolormesh(
        ax=ax0, x="time", y="height", norm=LogNorm(vmin=1, vmax=100),
        cmap="Spectral_r", rasterized=True, add_colorbar=False
    )
    cax0 = make_axes_locatable(ax0).append_axes("right", size="1%", pad=-0.05)
    fig.colorbar(im0, cax=cax0, label="backscatter ratio", extend='both')
    # cloud top height
    da_cth.plot(ax=ax0, x="time", ls="", marker=".", color="k", label="Cloud top")
    ax0.legend()

    # Radar reflectivity
    im1 = da_radar.plot(ax=ax1, x="time", rasterized=True, add_colorbar=False)
    cax1 = make_axes_locatable(ax1).append_axes("right", size="1%", pad=-0.05)
    fig.colorbar(im1, cax=cax1, label="reflectivity / dBZ")

    for ax in [ax0, ax1]:
        ax.set_yticks([0, 1000, 2000, 3000])
        ax.set_ylabel("height / m")

    ## 2D horizontal
    # SpecMACS radiance
    im2 = da_swir.plot.pcolormesh(ax=ax2, x="time", y="angle", cmap="Greys_r",
                                  vmin=0, vmax=20, rasterized=True, add_colorbar=False)
    cax2 = make_axes_locatable(ax2).append_axes("right", size="1%", pad=-0.05)
    fig.colorbar(im2, cax=cax2, label="SWIR radiance", extend='max')
    ax2.set_ylabel("view angle / deg")

    # VELOX brightness temperature
    im3 = (ds_bt.Brightness_temperature - 273.15).plot.pcolormesh(ax=ax3, x="time", y="va",
            cmap="RdYlBu_r", rasterized=True, add_colorbar=False)
    cax3 = make_axes_locatable(ax3).append_axes("right", size="1%", pad=-0.05)
    fig.colorbar(im3, cax=cax3, label="Brightness\ntemperature / °C")
    ax3.set_ylabel("view angle / deg")


    ## We leave an empty axis to put the legend here
    [s.set_visible(False) for s in axLegend.spines.values()]
    axLegend.xaxis.set_visible(False)
    axLegend.yaxis.set_visible(False)

    ## 1D
    # We plot 1D cloud masks
    # Each we annotate with a total min and max cloud cover for the scene shown and
    # remove disturbing spines
    lines = []
    plot_order = ['WALES', 'HAMP Radar', 'specMACS', 'VELOX', 'KT19', 'HAMP Radiometer']
    axes = dict(zip(plot_order, [axL1, axL2, axL3, axL4, axL5, axL6]))

    for k in plot_order:
        ds = data_feb5[k]
        lines += ds.cloud_mask.plot.line(ax=axes[k], x="time", label=k, color=colors[k])
        if axes[k]!=axL6:
            axes[k].spines["bottom"].set_visible(False)
            axes[k].xaxis.set_visible(False)
        axes[k].set_ylabel("")
        axes[k].annotate(f"{ds.CF_min.mean().values * 100:.1f}"
                         + f" - {ds.CF_max.mean().values * 100:.1f} %",
                         (1, 0.5), color=colors[k], xycoords="axes fraction")

    # We add one legend for all 1D cloud masks
    labels = [l.get_label() for l in lines]
    axL1.legend(lines, labels, ncol=7, bbox_to_anchor=(0.01, 1.5))
    axL3.set_ylabel("cloud flag")

    for ax in [ax0, ax1, ax2, ax3, axLegend, axL1, axL2, axL3, axL4, axL5, axL6]:
        ax.set_xlabel("")
        ax.set_title("")

    axL6.set_xlabel("UTC time")
    axL6.set_xticks(np.arange(np.datetime64('2020-02-05T11:22:00'),
                    np.datetime64('2020-02-05T11:28:00'), np.timedelta64(1, 'm')))
    ax0.xaxis.set_major_formatter(mpl.dates.DateFormatter('%H:%M'))
    fig.autofmt_xdate()

    fig.align_ylabels(axs=[ax0, ax1, ax2, ax3, axL3])
    #fig.align_ylabels(axs=[cax0, cax1, cax2])

    label_pos_x = np.datetime64('2020-02-05T11:21:35')
    for ax, label in zip([ax0, ax1, ax2, ax3, axL1], ["(a)", "(b)", "(c)", "(d)", "(e)"]):
        ax.text(label_pos_x, ax.get_ylim()[1], label, verticalalignment='bottom')

Statistical comparison

We will further compare cloud mask information from all HALO flights during EUREC4A on the basis of circle flight segments. Most of the time, the HALO aircraft sampled the airmass in circles east of Barbados. We use the meta data on flight segments, extract the information on start and end time of individual circles, and derive circle-average cloud cover.

For the 2D imagers VELOX and speMACS we use the full swath. In the case study above we had selected the central measurements for a better comparison with the other instruments. However, in the following we investigate the broad statistics and therefore include as much information on the cloud field as we can get from the full footprints of each instrument.

The following statistics are based on the minimum cloud cover including the cloud mask flag most_likely_cloudy and maximum cloud cover with cloud mask flags \(\in\) {most_likely_cloudy, probably_cloudy}.

def midpoint(a, b):
    return a + (b - a) / 2

def cf_circles(ds):
    return xr.concat(
        [
            xr.Dataset({
                "CF_max": ds.sel(time=slice(i["start"], i["end"])).CF_max.mean(dim="time"),
                "CF_min": ds.sel(time=slice(i["start"], i["end"])).CF_min.mean(dim="time"),
                "time": xr.DataArray(midpoint(i["start"], i["end"]), dims=()),
                "segment_id": xr.DataArray(i["segment_id"], dims=())
            })
            for i in segments.values()
        ], dim="time")

Get meta data

meta = eurec4a.get_flight_segments()

We extract all flight IDs of HALO’s research flights

flight_ids = [flight_id
              for platform_id, flights in meta.items()
              if platform_id=="HALO"
              for flight_id, flight in flights.items()
              ]

Within each flight we further extract the circle segments

segments = {s["segment_id"]: {**s, "flight_id": flight["flight_id"]}
             for platform_id, flight_id in meta.items()
             if platform_id=="HALO"
             for flight in flight_id.values()
             for s in flight["segments"]
            if "circle" in s["kinds"]
            }
print(f"In total HALO flew {len(segments)} circles during EUREC4A")

Time series of circle cloud cover

Time series of circle-mean (minimum) cloud cover estimates. The markers visualize the research-flight average, while the lines span the range of all circle-mean cloud cover estimates within a respective flight.

ts = np.timedelta64(2, 'h')

with plt.style.context("mplstyle/wide"):
    fig, ax = plt.subplots()
    for k, v in data.items():
        ds = cf_circles(v)
        ds["date"] = ds.time.astype('<M8[D]')
        ax.errorbar(
            x=np.unique(ds.date) + ts,
            y=ds.groupby("date").mean().CF_min.values,
            yerr=abs(np.array([ds.groupby("date").min().CF_min.values,
                               ds.groupby("date").max().CF_min.values])
                     - ds.groupby("date").mean().CF_min.values),
            fmt='o',
            color=colors[k],
            label=k,
        )
        ts += np.timedelta64(4, 'h')
    ax.set_ylim(0, 1)
    ax.set_xticks(np.unique(ds.date) + np.timedelta64(12, 'h'))
    ax.xaxis.set_major_formatter(mpl.dates.DateFormatter('%b %d'))
    fig.autofmt_xdate()

    ax.set_ylabel("Minimum circle-mean\ncloud cover")
    ax.legend(title="Instruments", bbox_to_anchor=(1,1), loc="upper left")
    ax.set_xlabel("Date")

Histogram of circle-mean cloud cover

We first have a look at the distributions of circle-mean cloud cover based on the minimum (most_likely_cloudy) and the maximum estimates (most_likely_cloudy & probably_cloudy).

binedges = np.arange(0, 1.2, .2)
binmids = (binedges[1:] + binedges[:-1]) / 2
with plt.style.context("mplstyle/wide"):
    fig, (ax0, ax1) = plt.subplots(1, 2, sharey=True)
    count = 0
    width = 0.02
    for k, v in data.items():
        ds = cf_circles(v)
        ax0.bar(x=binmids - 0.05 + count,
                height=np.histogram(ds.CF_min.values, bins=binedges)[0] / ds.time.size,
                width=width, color=colors[k], label=k)
        ax1.bar(x=binmids - 0.05 + count,
                height=np.histogram(ds.CF_max.values, bins=binedges)[0] / ds.time.size,
                width=width, color=colors[k], label=k)
        count += 0.02

    xticks = [0.1, 0.3, 0.5, 0.7, 0.9]

    for ax in [ax0, ax1]:
        ax.set_xlim(0, 1)
        ax.set_ylim(0, 1)
        ax.spines['bottom'].set_visible(False)
        for x in xticks:
            ax.axhline(y=0, xmin=x-0.06, xmax=x+0.06, color="k")
        ax.set_xticks([0, 0.2, 0.4, 0.6, 0.8, 1])


    ax0.set_xlabel("Minimum circle-mean cloud cover")
    ax1.set_xlabel("Maximum circle-mean cloud cover")
    ax0.set_ylabel("Fraction of circles")
    ax1.legend(title="Instruments", bbox_to_anchor=(.55,1), loc="upper left")

    ax0.text(-0.18, ax.get_ylim()[1], "(a)", verticalalignment='top')
    ax1.text(-0.1, ax.get_ylim()[1], "(b)", verticalalignment='top')

For a better comparison of minimum and maximum circle-mean cloud cover we merge the two above plots and show their difference in the following plot. In particular, we show the cumulative fraction of circle-mean cloud cover estimates. Depending on the instruments and some instrument downtimes, the available circle counts range from 64 to 72. The bins on the x-axis have a bin width of 0.2 respectively. The bars span the range defined by the minimum cloud cover based on cloud flag most likely cloudyand the maximum cloud cover based on cloud flags most likely cloudy and probably cloudy.

with plt.style.context("mplstyle/wide"):
    fig, ax = plt.subplots()
    count = 0
    width = 0.02
    for k, v in data.items():
        ds = cf_circles(v)
        hist_min = (np.histogram(ds.CF_min.values, bins=binedges)[0]
                    / (ds.time.size - np.isnan(ds.CF_min.values).sum()))
        hist_max = (np.histogram(ds.CF_max.values, bins=binedges)[0]
                    / (ds.time.size - np.isnan(ds.CF_max.values).sum()))
        # draw a fake default line at the minimum
        ax.bar(x=binmids - 0.05 + count,
                height=0.015,
                width=width,
                bottom=np.cumsum(hist_min),
                color=colors[k], label=k)
        ax.bar(x=binmids - 0.05 + count,
                height=np.cumsum(hist_max) - np.cumsum(hist_min),
                width=width,
                bottom=np.cumsum(hist_min),
                color=colors[k])
        count+=0.02

    # manually set x- and y-axis
    [s.set_visible(False) for s in ax.spines.values()]
    # x-axis
    ax.set_xlim(0, 1)
    xticks = [0.1, 0.3, 0.5, 0.7, 0.9]
    for x in xticks:
        ax.axhline(y=0, xmin=x-0.06, xmax=x+0.06, color="k")
    ax.set_xticks([0, 0.2, 0.4, 0.6, 0.8, 1])
    ax.set_xlabel("Circle-mean cloud cover")
    # y-axis
    ax.set_ylim(0, 1.02)
    ax.plot([0, 0], [0, 1], color="k")
    ax.set_ylabel("Fraction of circles")

    ax.legend(title="Instruments", bbox_to_anchor=(1,1), loc="upper left")

A small interpretation attempt

We highlight a few features that stick out in the above figures showing the cloud cover statistics.

Time series:

  • the WALES dataset does not have a probably_cloudy flag, and thus, the CF_min and CF_max variables are the same. The instrument design and methodology used to define the cloud flag seems to be very sensitive to small and optically thin clouds and the cloud cover estimates agree better with the CF_max of all other instruments.

  • The time series shows that on the transfer flight on 19 January the HAMP radar and radiometer and specMACS datasets were processed and datasets are available including one circle near Barbados. For WALES, VELOX, and KT19 no data is available.

  • The disagreement in cloud cover estimates for the flight on 15 February is partly due to a deep stratocumulus layer with a strong reflection at cloud top that blinded the lidar (WALES), while the radar was still able to provide reasonable estimates.

Distributions:

  • All instruments, excluding WALES, agree well in the distribution of circle-mean cloud cover estimates according to their CF_min variable, while they vary on their definition of uncertain probably_cloudy measurements that are included in CF_max.

  • In the case of VELOX as well as for all other passive instruments, the cloud cover estimates shift to higher numbers when including the uncertain cloud flag (from minimum to maximum cloud cover).

  • The fraction of circle-mean cloud cover difference (minimum to maximum) shows a disagreement between the instruments for cloud cover ranges up to about 0.5 due to their different detection principles. Optically thin clouds can have a significant impact on circle-mean estimates in low cloud cover situations and lead to uncertain pixels. WALES can detect such thin clouds and suggest generally higher cloud cover with the change in cumulative fraction being strongest between 0.2 and 0.6.

  • In general we find that only few circles have a cloud cover higher than 0.6. At such high cloud cover the instruments agree remarkably well and also, minimum and maximum cloud cover are almost equal.

  • About 50 % of the time cloud cover estimates are below 0.2.

Camapign mean cloud cover

  • from all available data including the transfer flights

print("Instrument: min - max")
print("")
for k, v in data.items():
    print(f"{k}: {v.CF_min.mean().values:.2f} - {v.CF_max.mean().values:.2f} ")
  • only from local research flights

localRF = slice("2020-01-22T00:00:00", "2020-02-15T23:59:59")
print("Instrument: min - max")
print("")
for k, v in data.items():
    print(f"{k}: {v.sel(time=localRF).CF_min.mean().values:.2f} - "
          + f"{v.sel(time=localRF).CF_max.mean().values:.2f} ")
